UNDERBAR BRACKET
2 MOUNTING OPTIONS = EASY RETROFITS

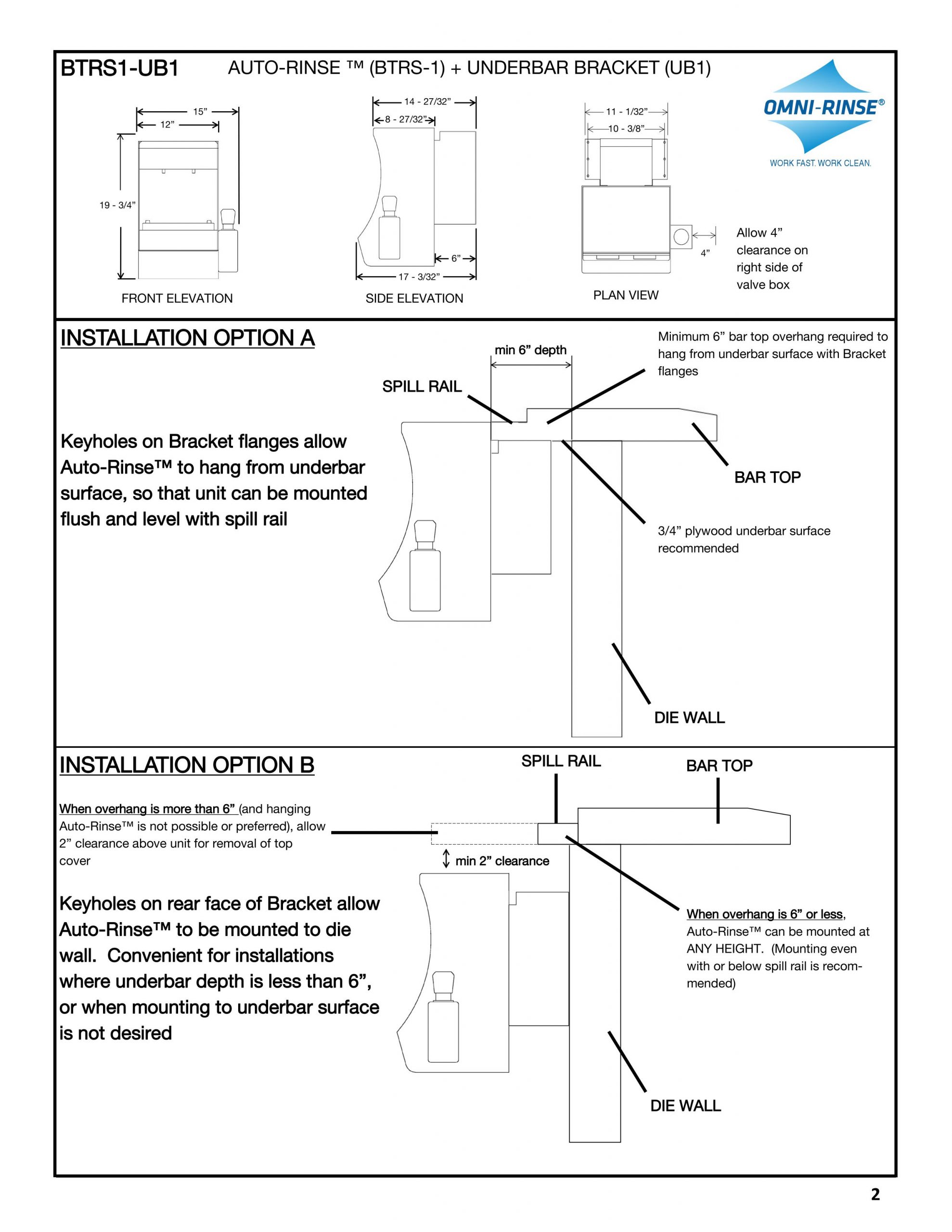

Mounting Option #1
Use the keyholes on the Bracket flanges to hang the unit directly from beneath the bar (a 3/4" plywood sub bar surface is recommended). This option allows Auto-Rinse™ to become a natural extension of the bar top, increasing work space and convenience for the bartenders.
Mounting Option #2

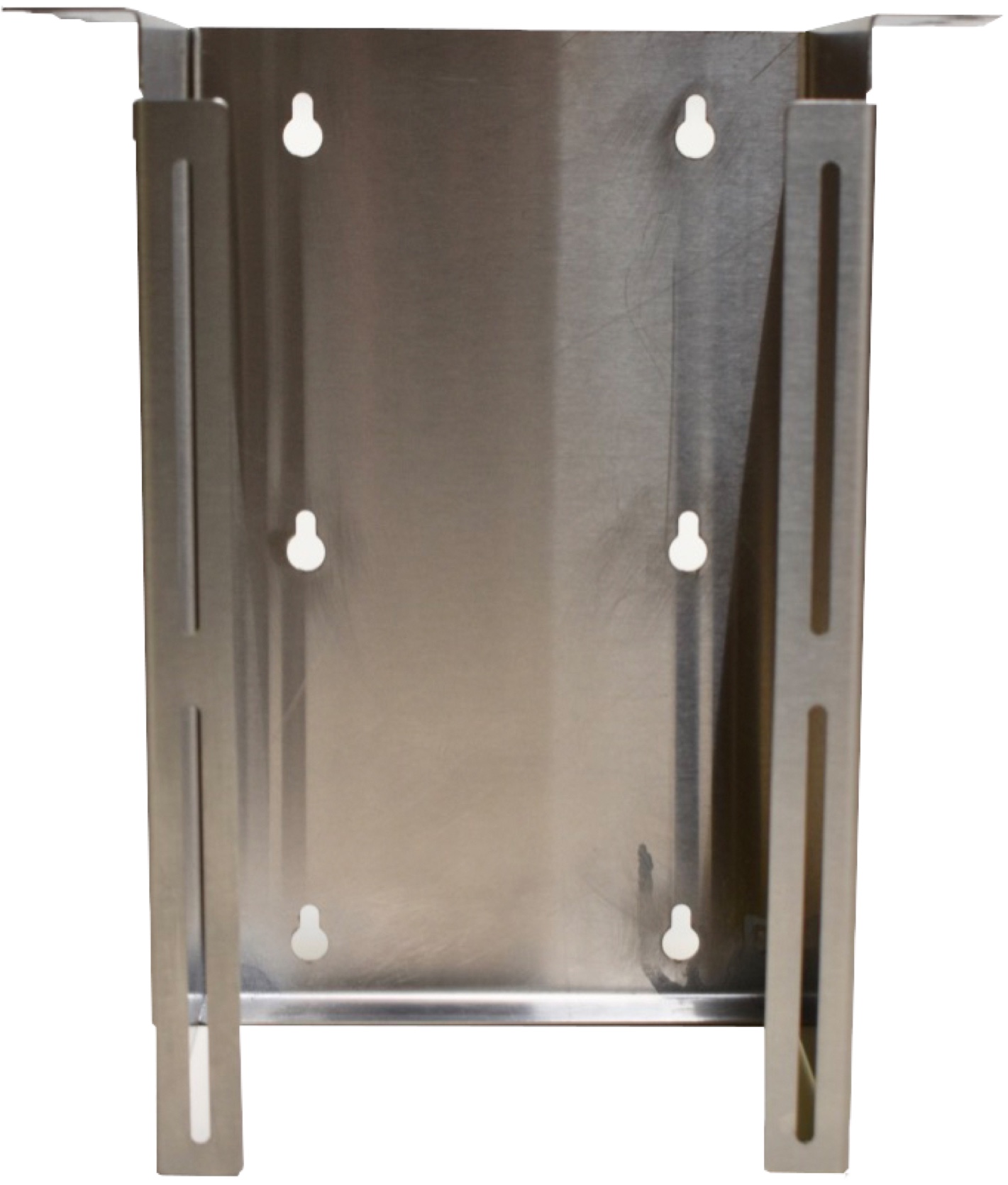

When there is less than 6" of underbar depth, hanging Auto-Rinse™ from the sub bar surface is not possible. Also, some customers prefer not to drill into their underbars. The 6 keyholes on the back of the Underbar Bracket allow Auto-Rinse™ to be mounted to the underbar wall /die wall, and brings the unit forward 6" so that it is easily within the bartender's reach.

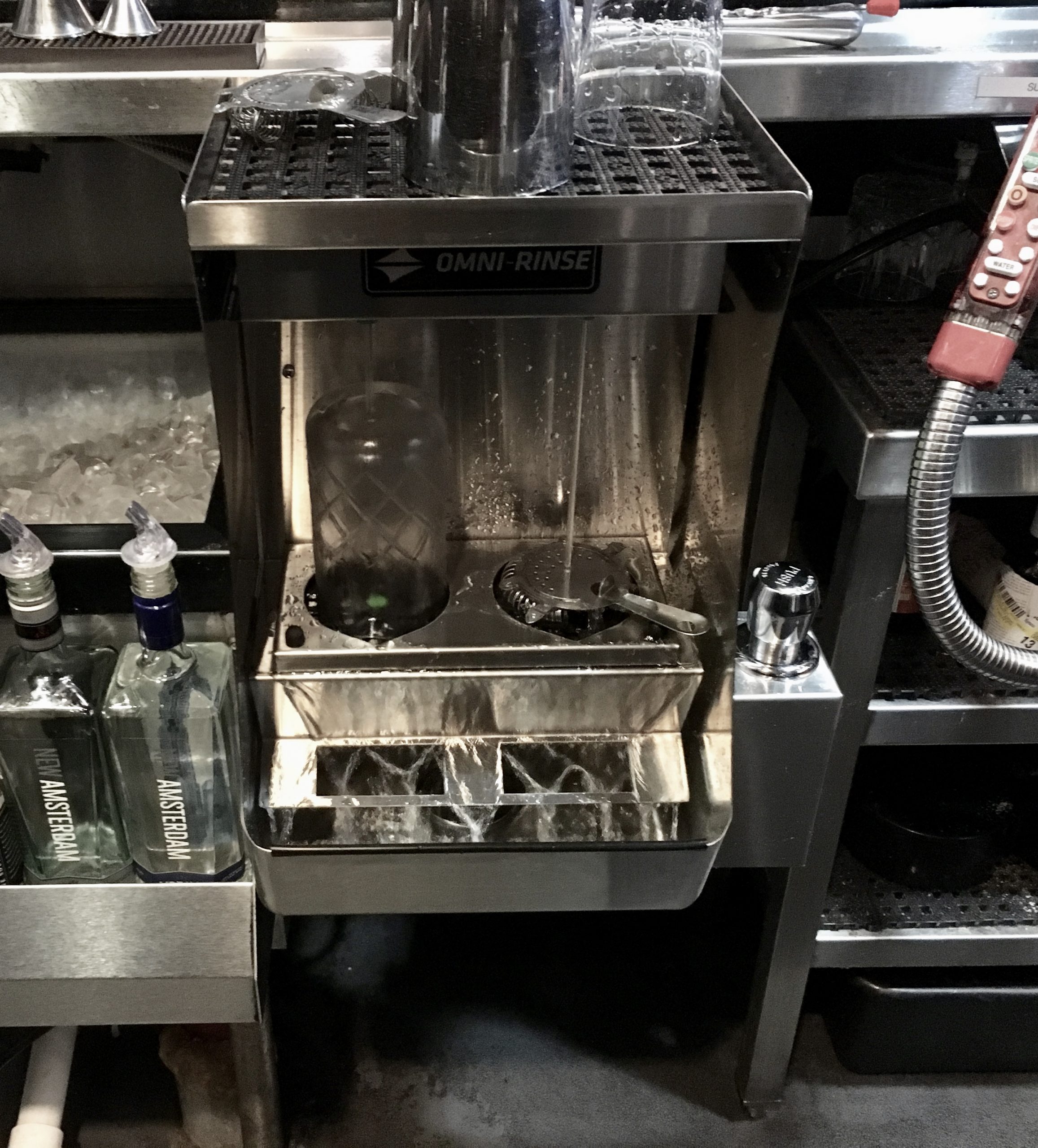

Space savings
The Underbar Bracket eliminates the need for equipment legs that eat up floor space. This allows bartenders to use the area beneath it as they see fit. In this installation, the bartenders told us that putting a bus tub underneath Auto-Rinse™ made a huge difference to increase efficiency. The Underbar Bracket makes retrofits easy, so no need to wait for a remodel!
